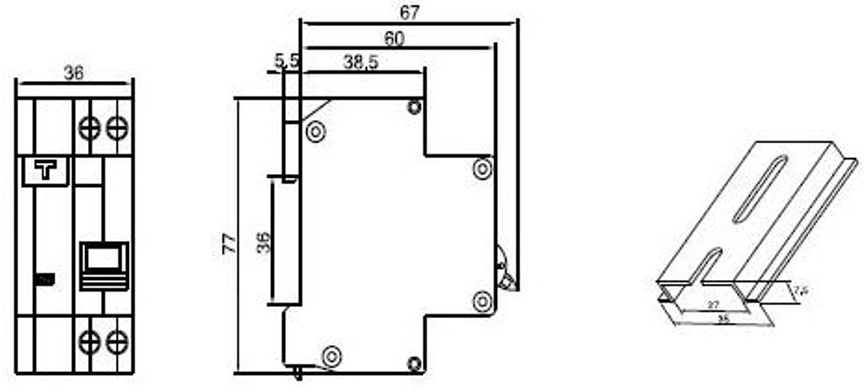

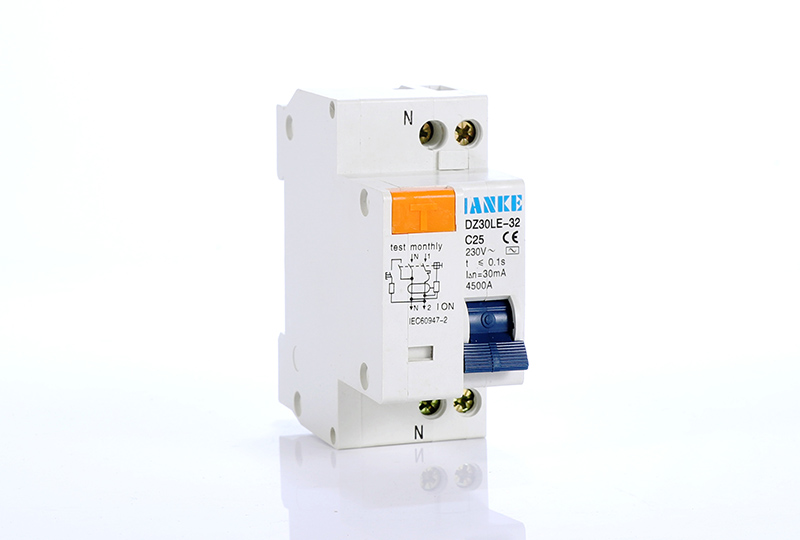

DZ30LE-32 is used in the single phase circuit of AC 50Hz/60Hz, rated voltage 230V, used as electron shock protection. It can protect circuit form overload and short circuit. This product has advantages of small volume, high breaking capacity, live and zero wire are cut off at the same time, also protecting person from electric shock when the live wire connected opposite. It conforms with the standards of IEC61009.
Main Technical Parameter
Type
DZ30LE-32
Pole
1P+N
Rated
current (A)
6,10,16,20,25,32
Rated
voltage (V)
230
Rated
short circuit breaking capacity Icn(KA)
4.5
Rated
residual making/breaking capacity I△m(A)
500
Rated
residual action current I△n(A)
0.03
Rated
residual non-action current I△no(A)
0.015
Applicable conducting wire
Rated
current(A)
In<6
6<In<13
13<In<20
20<In<25
25<In<32
Norminal cross section of wire mm2
1
1.5
2.5
4
6
Residual current breaking time
In(A)
I△n(A)
Breaking
time(s) when equals to rating following
I△n
2I△n
5I△n
5,10,20,50,100,200,500a(A)
I△tb
6-32
0.03
0.1
0.06
0.04
0.04
0.04
The over-current protection property
Ambient
Temperature
Initial
Status
Test Current
Expected Result
Expected Result
Note
30±2℃
Cold
position
1.13In
t≥1h
Non-release
-
Carried out immediately after previous test
1.45In
t<
1h
Release
-
Cold position
2.55In
1s<
t <60s
Release
Current smoothly rises tospecified value within
5s
