Application
The RCCB is in conformity with the standard of IEC61008.The RCCB can cut off the fault circuit immediately on the occasion of shock hazard of earth leakage of trunk.Thus it is suitable to avoid the shock hazard and fire caused by earth leakage. The RCCB is mainly suitable for use in varieties of plants and enterprises, building construction 1 phase 230V and 3 phase 400V 50/60Hz, RCCB is not suitable for use on DC pulse system.
Main Technical Parameter
Type F360
Number of Poles 2P, 4P
Rated current (A) 16, 20, 25, 32, 40, 50, 63, 80, 100
Rated Residual Operating Current (In)(mA) 10, 30, 100, 300, 500
Rated Residual Non-peration Current (Ino)(mA) 0.5 In
Rated Voltage (V) AC230/240
AC400/415
Residual Operating Current Scope 0.5 In~ In
Residual Current Off-time 0.3S
Short Circuit Capacity (Icu) 3000A
Endurance 4000
Protection Degree IP20

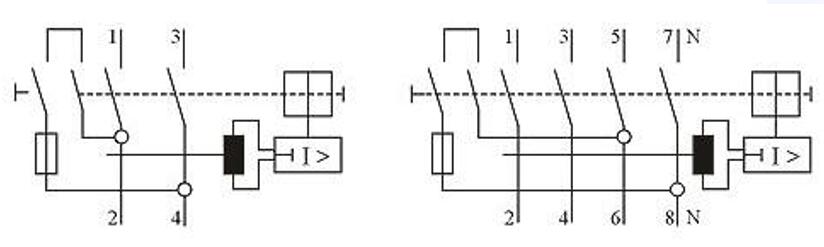

Operation principle

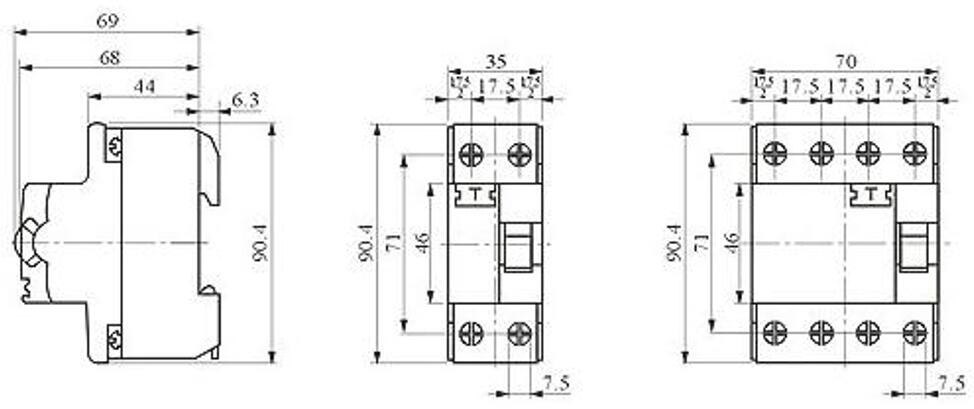

Dimension
