Application
The RCCB is suitable to the circuit of AC 50/60Hz.rated voltage 230V for 2 poles and 400V for 4 poles, and rated current up to 63A. when people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, the product can cut off the fault current in short period so as to protect person and the equipments, It also can be used in the infrequent starting of the circuit and motors.The circuit breaker is suitable to industry commerce,high-rise building, household and other dinds of places. This product meets the standard of IEC/EN61008-1.
Main Technical Parameter

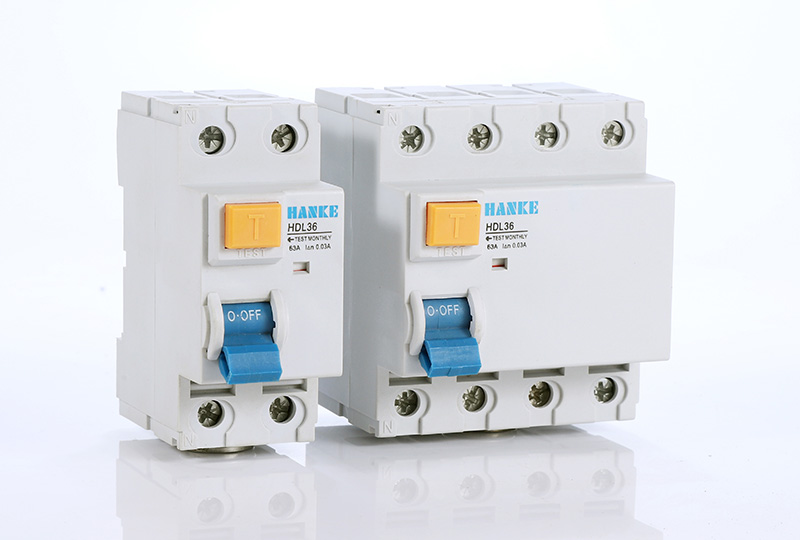

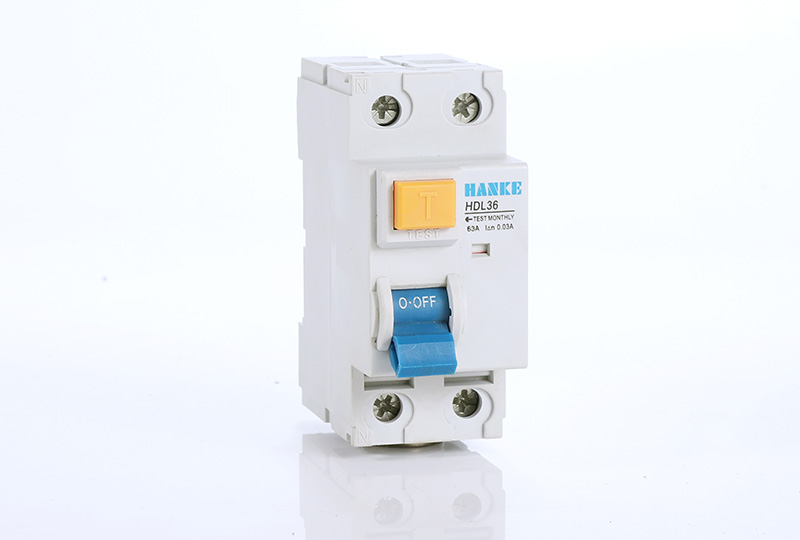

Type HDL36
Number of Poles 2P, 4P
Rated current (A) 20, 25, 40, 63
Rated Frequency 50/60Hz
Rated Voltage (V) 2P: AC230/240
4P: AC400/415
Rated Residual Non-peration Current (Ino)(mA)  0.5 In
Residual tripping current range 0.5 In~ In
Rated insulation voltage Ui (V) 500
Rated impulse withstand voltage (V) 6000
Rated breaking capacity 6000
Rated Residual Operating Current (In)(mA) 10, 30, 100, 300
Residual Current Off-time 0.1S
Rated residual current making & breaking capacity  500A(In=25-40A); 630A(In=63A)
Rated conditional short circuit current, Inc 6000A
Ambiemt temperature () -25~40
Mechanical Life 10000
Electrical life 4000
Degree of protection IP20
Mount On 35mm DIN rail

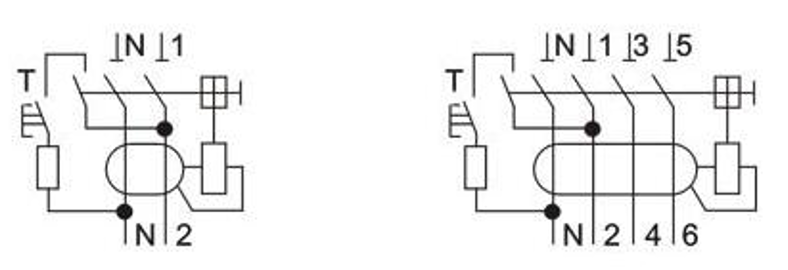

Wiring diagram
Dimension
