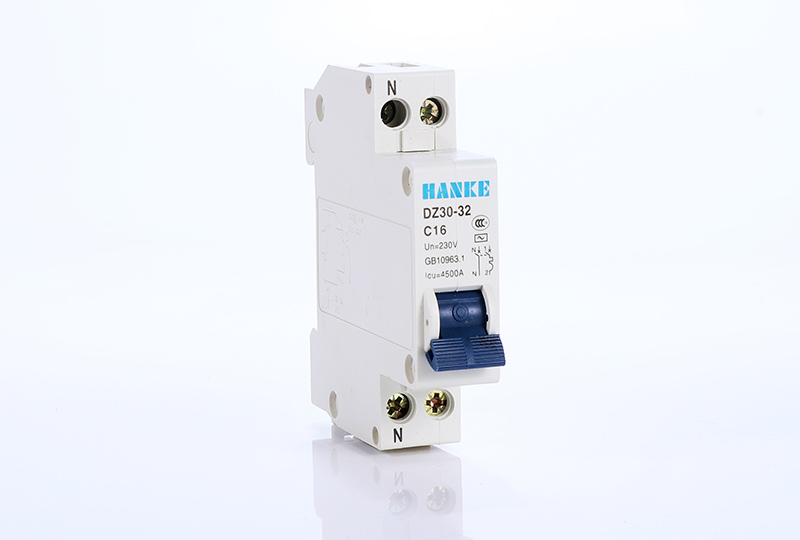

DZ30-32 siries is used in the single phase circuit of AC 50Hz/60Hz, rated voltage 230V or below for protecting circuit from overload and short circuit. This product has advantages of high breaking capacity, small volume, width is only 18mm, It conforms with the standards of IEC60898.

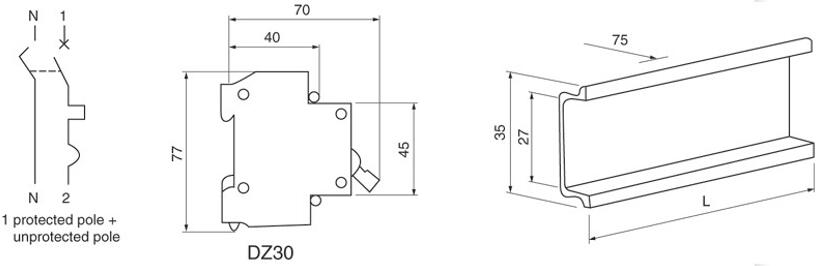

Main Technical Parameter
Type
DZ30-32
Pole
1P+N
Rated current (A)
6,10,16,20,25,32
Rated voltage(V)
230
Type of instantaneous release
C D
Rated
short circuit breaking capacity Icn(A)
4500
Applicable conducting wire
Rated
current(A)
Norminal
cross section of wire mm2
In≤6
1
6＜In≤13
1.5
13＜In≤20
2.5
20＜In≤25
4
25＜In≤32
6
The over-current protection property
Ambient
Temperature
Initial Status
Test Current
Expected Result
Expected Result
Note
30±2℃
Cold
position
1.13In
t≥1h
Non-release
-
Carried out immediately after previous test
1.45In
t<1h
Release
-
Cold position
2.55In
1s<t<60s
Release
Current
smoothly rises to specified value within 5s
